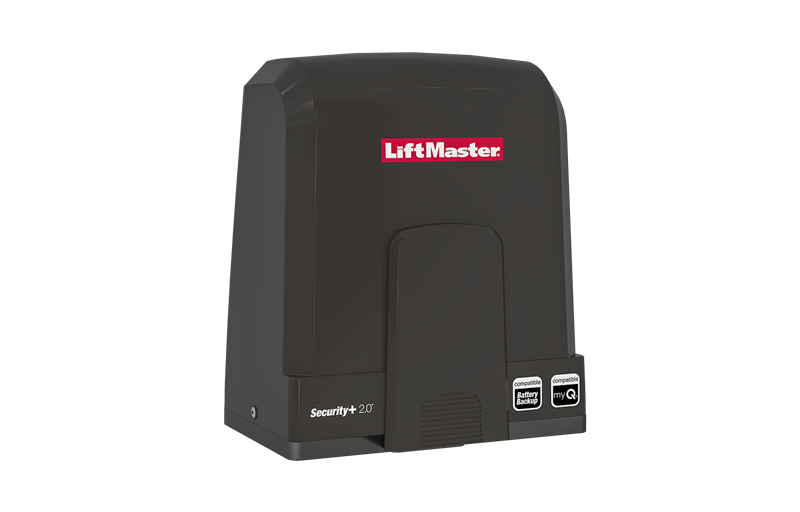

24 VDC Residential Rack & Pinion Drive Slide Gate Operator

• Max gate weight : 1000 kg / 2205 lbs Max gate travel distance : 12m / 39 ft
• Powered by myQ: Monitor and control your gate remotely through the myQ app. Requires internet connection and optional LiftMaster 828LM gateway device.
• Security+ 2.0: Safeguards facility access with rolling code technology, opening for registered devices only
• Entrapment Protection: Built-in inherent obstruction detection and reversing system is complemented by two monitored entrapment protection devices (photoeye and/or resistive edge).
• Smooth Start/Stop Operation: 24 VDC motor provides adjustable soft start/stop for smooth quiet, operation, prolongs motor life.
• Manual Disconnect and Reset Button: Security key protected, allows manual open/close of gate in case of power loss. Includes reset button allowing stopping gate motion and other functions.
• LED Diagnostic Display: Simplifies installation, programming and troubleshooting.
• Electronic Programming: Enables fine tuning of operator settings and precision adjustments to motor force, speed and travel limits.
• Battery Backup: optional 490EVUL backup battery accessory kit (2 x 12V, 2.2Ah lead batteries) fits inside operator compartment.
